Frigoscandia Model- GC-P-42 Spiral Freezer: Item#:FC66501

Product Specification:

Item #: FC66501
Type: -Gyro Compact
Brand: –
Model: -GC-P42
Condition: -Working order when removed in 2020
Refrigerant: -Ammonia
Serial Number: -847 02-032
Volt: –

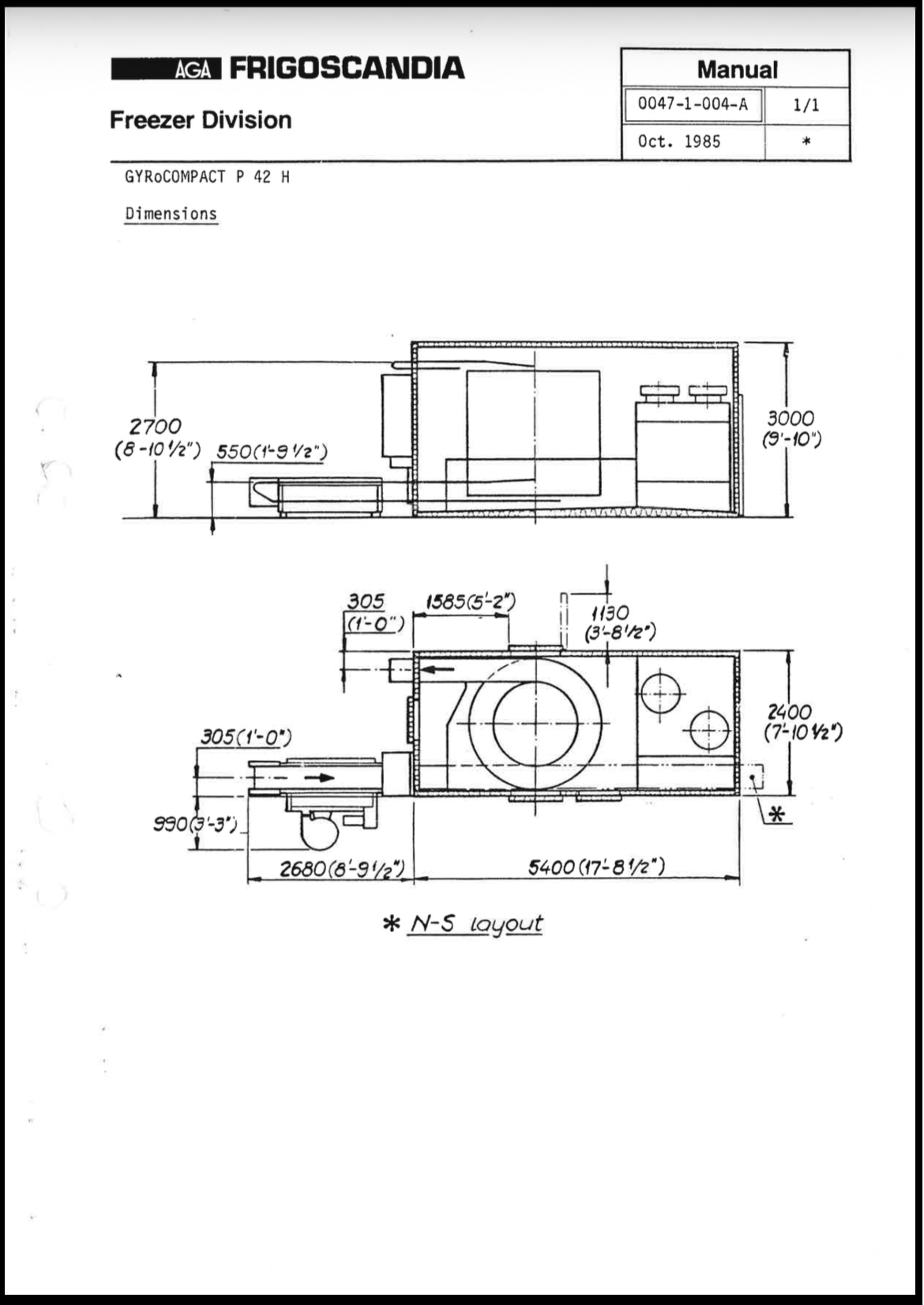

Weight and Dimensions 18′ x 18′ x 10′
PDF Sheet: Factory Information [PDF]

Description:

Frigoscandia GYRoCOMPACT P42 Spiral Freezer
  • Manufacturer: Frigoscandia (now JBT Corporation).
  • Purpose: Rapidly freezing a variety of food products to preserve their quality, taste, and texture.
  • Technology: Employs a self-stacking FRIGoBELT® Nova system and a FRIGoDRIVE® system to efficiently convey products through the freezing zone without the need for a center drum, minimizing the risk of jamming and simplifying cleaning
  • Key Features:
    • Energy efficient.
    • Hygienic design for easy cleaning.
    • Pre-assembled for faster installation.

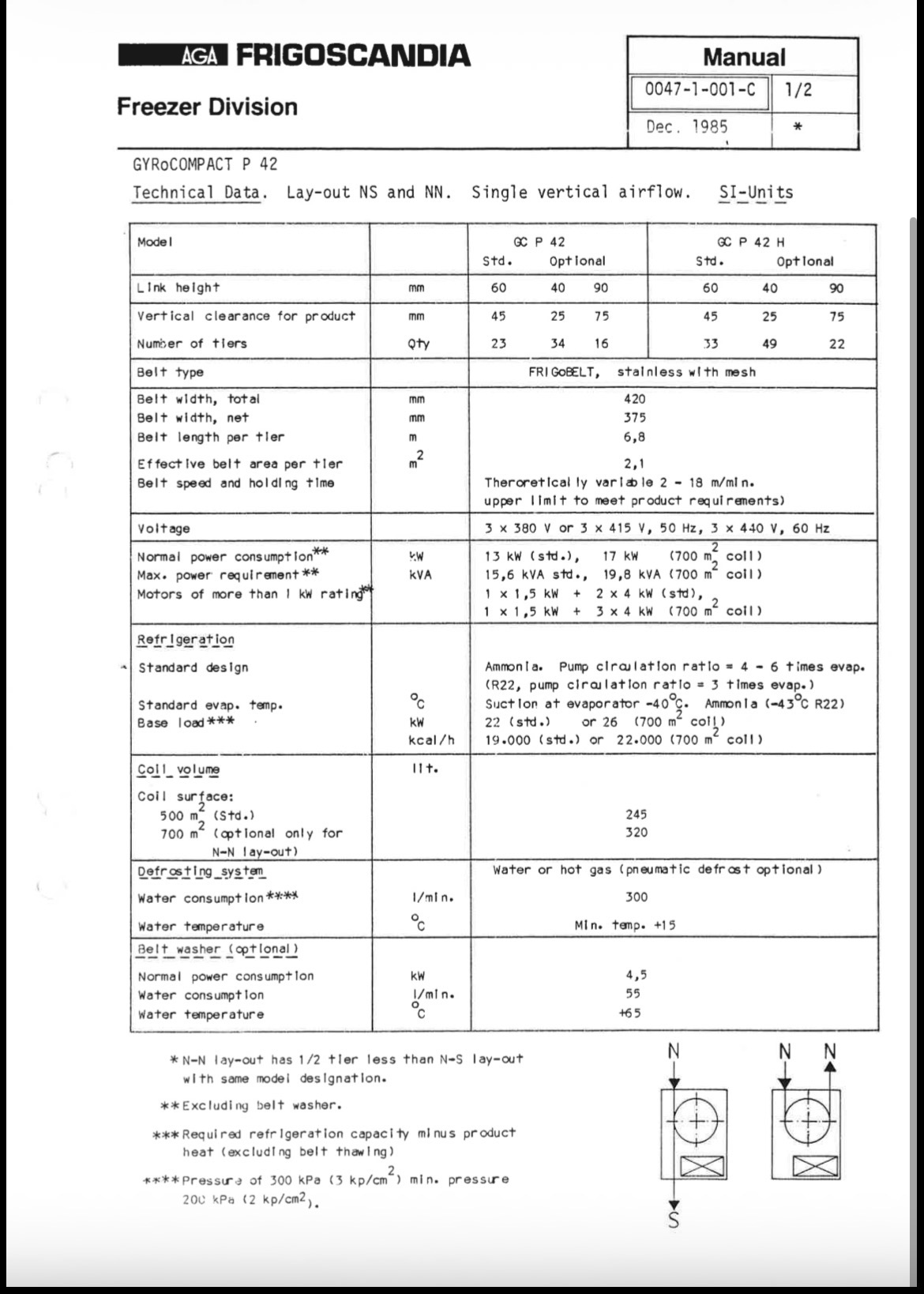

  • Specifications:
    • Refrigeration capacity: 105 kW.
    • Refrigerant type: NH3 (ammonia), R717/R22/R502.
    • Overall spiral belt length: 258.4 m.
    • Effective belt width: 375mm or 380mm.
    • Maximum product height: 45mm or 75mm.
    • Dimensions: Length 5400 mm x Width 2400 mm x Height 3600 mm or Length 8080mm x Width 2400mm x Height 3000mm or Length 8800 mm x Width 3600 mm x Height 3600 mm.

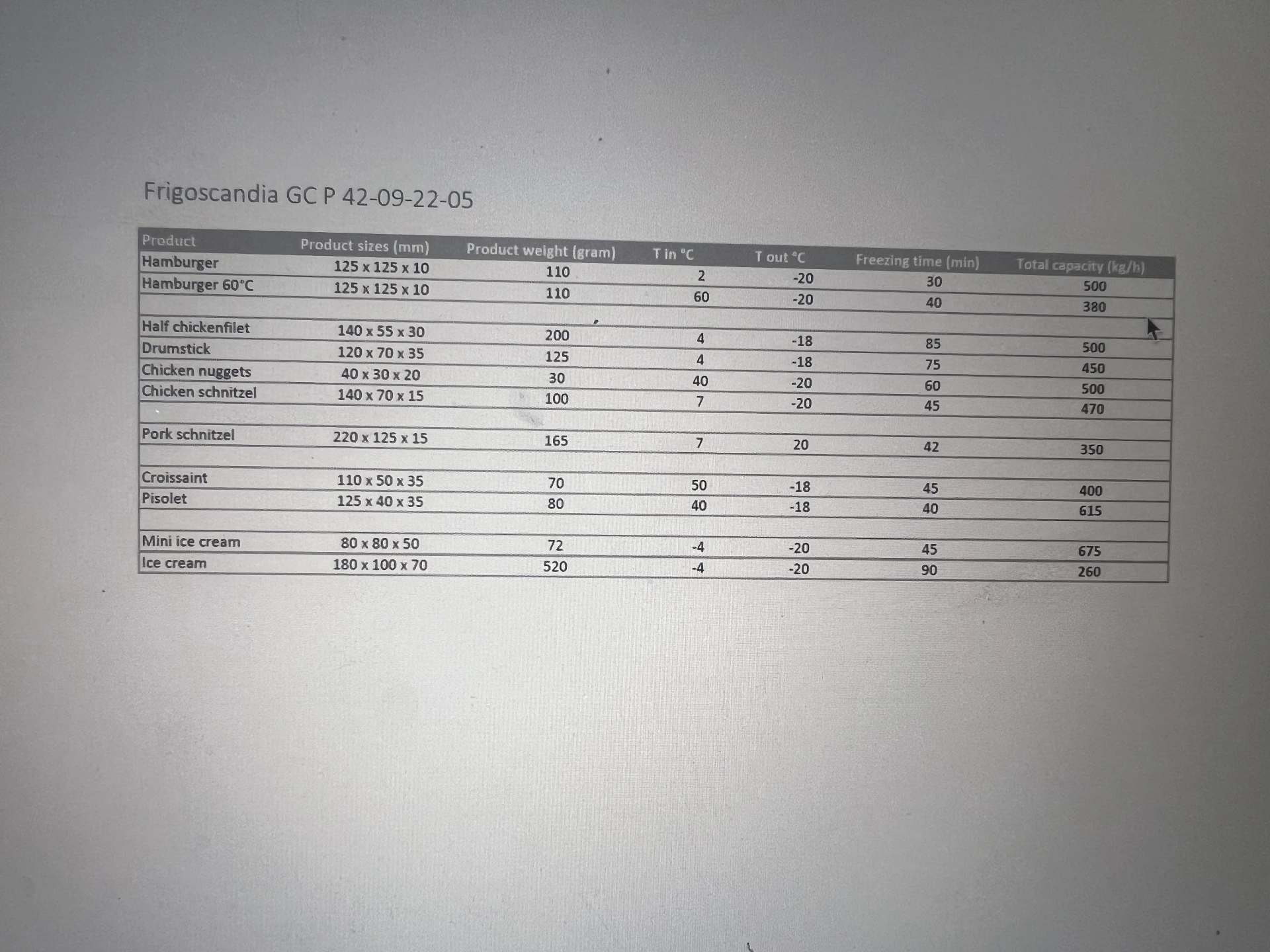

    • Capacity examples: 500 kg/h hamburgers, 380 kg/h hamburgers, 500 kg/h half chicken filet, 675 kg/h mini ice cream tray.



History:

Installed at fruit farm and determined too small capacity for production- Sitting idle for 3 years.
