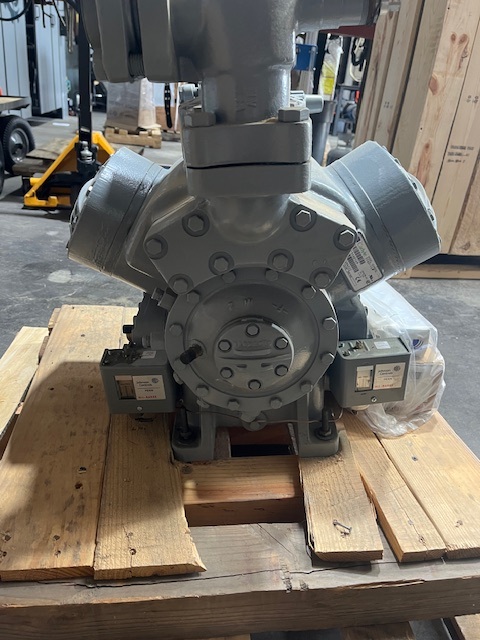

Industrial hydraulic pump on a wooden pallet in a warehouse, with hoses and gauges nearby, ready for installation or transport.
Industrial hydraulic pump on a wooden pallet in a warehouse, with hoses and gauges nearby, ready for installation or transport.

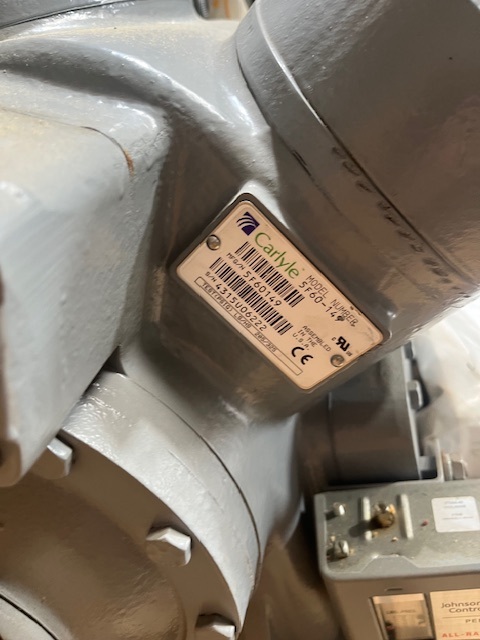

Close-up of a gray industrial motor/gearbox with a label showing the Carlyle brand, model, and serial number.

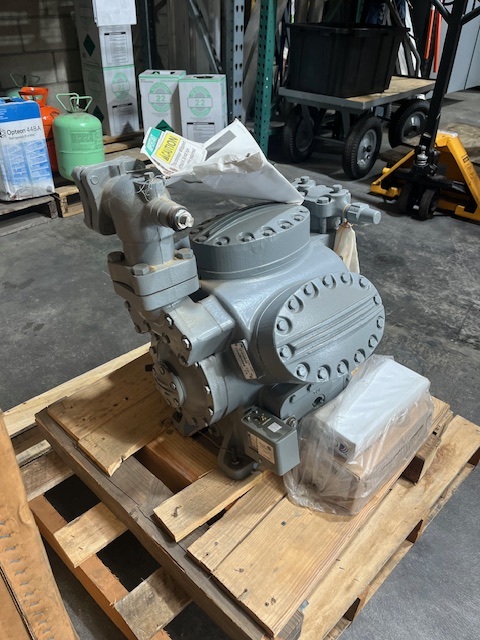

Grey industrial valve or pump assembly mounted on a wooden pallet in a warehouse, with bolted flanges, pressure ports, and protective wrapping nearby.

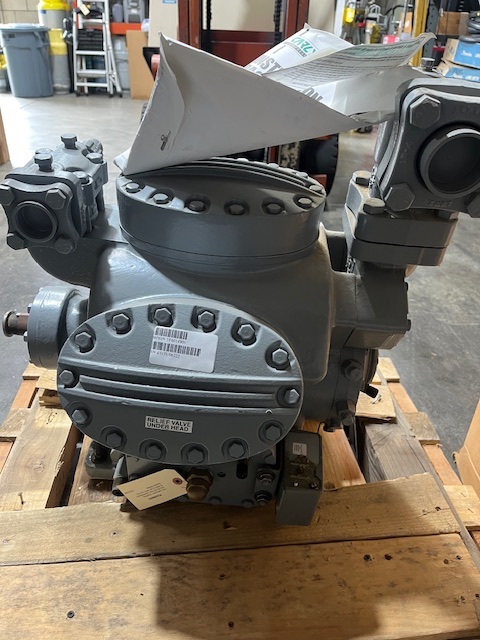

Large industrial pressure relief valve with an actuator mounted on a wooden pallet in a warehouse, tag and paperwork visible on the unit.

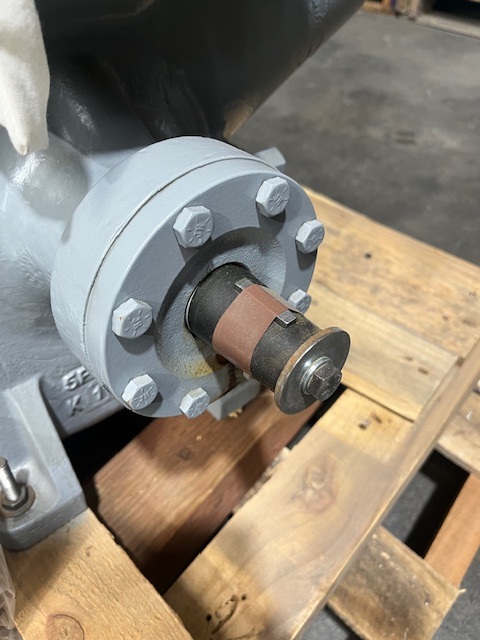

Industrial flange coupling on a gray housing with a brown shaft sleeve, bolts around the flange, placed on a wooden pallet.

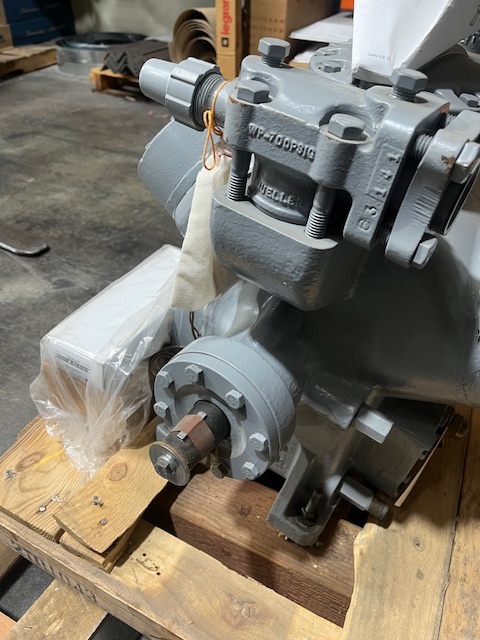

Industrial valve assembly with an actuator mounted on a wooden pallet in a warehouse.

Carrier Freon 5F60 Reciprocating Compressor: Item# C02395

Product Specification:

Item #: C 02395
Size: –
Brand: – Carrier
Model: -5F60
Condition: -Unused Surplus
Refrigerant: -Freon
Serial Number: -4315U06222
Volt: NA
Weight and Dimensions [~500Lbs/ 48″ x 48″ x 40″
PDF Sheet: Factory Information [PDF]

Description:

Carrier Freon Reciprocating Compressor

The Carrier/Carlyle 5F60 is an open-drive, 6-cylinder reciprocating refrigeration compressor used in commercial refrigeration, marine refrigeration, industrial process cooling, and HVAC applications. Exact performance depends on the model suffix (for example, 5F60-A219, 5F60-149, etc.), refrigerant, operating speed, and suction/discharge conditions.

General specifications

Specification Typical Value
Compressor type Open-drive reciprocating
Cylinders 6
Drive External motor via belt or direct coupling
Capacity control Unloading available (33%, 50%, 66%, 83% depending on configuration)
Minimum speed Approximately 900 rpm
Typical operating speed 900–1750 rpm
Displacement Approximately 59.6 CFM at 1750 rpm
Oil capacity 13 pints (about 6.2 L)
Oil lubrication Positive-pressure oil pump
Weight 400–635 lb (181–288 kg), depending on configuration
Refrigerants Originally R-12, R-22, R-502; many rebuilt units are configured for R-404A and other refrigerants with appropriate components and oil.



History:

Purchased from clients spared parts inventory

Unused surplus
